Shaft Coupling 12141747 for MWM TCG2020 Gas Engine

5 0 Reviews

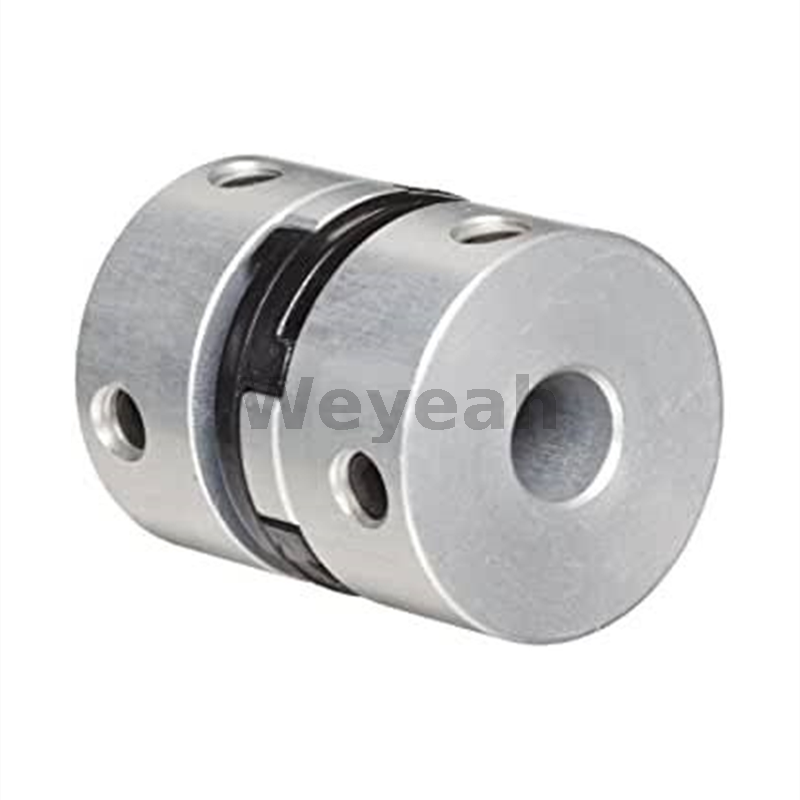

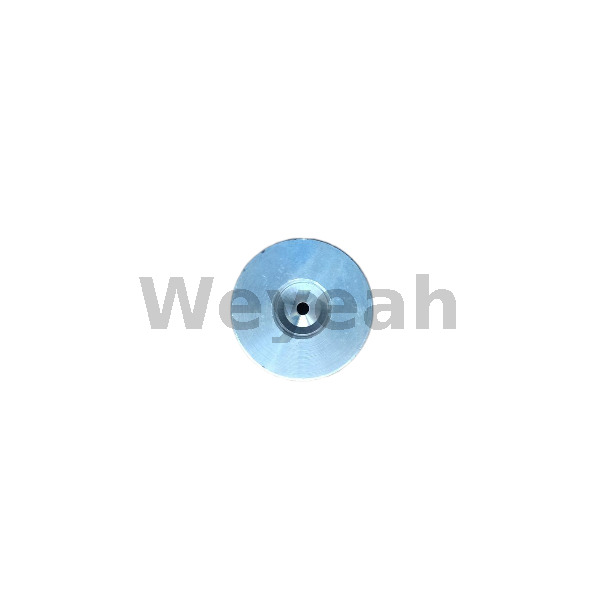

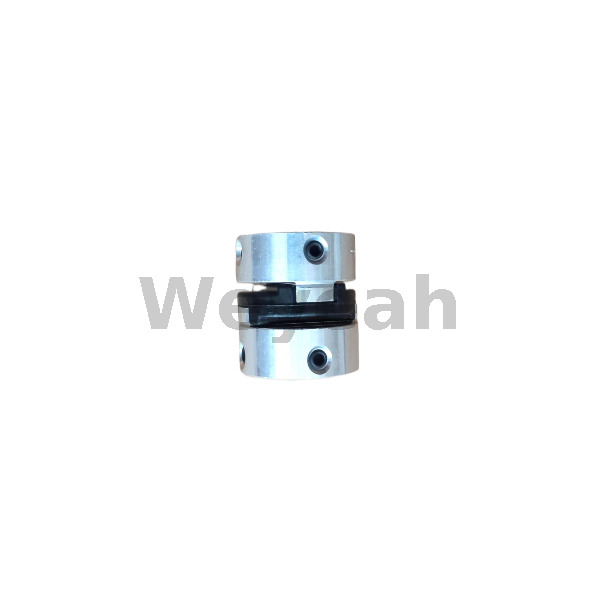

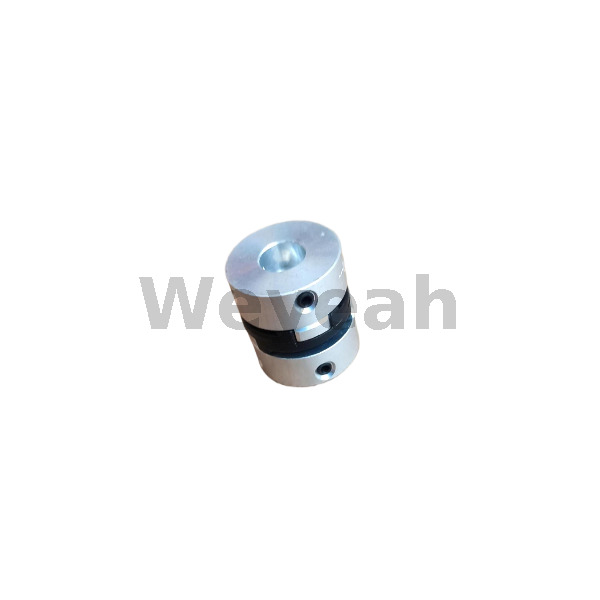

Description: Shaft coupling.
MWM part number: 1214 1747,1214-1747,12141747.
Suitable engine model: TCG2020V20,TCG2020V16K,TCG2020V12,CG170-20,CG170-16K,CG170-12.

Price: $ 86.71

Model:
WY12141747
Brand:
Weyeah
Part No:
12141747
Suitable for:
TCG2020
Weight:
0.034
Delivery time:
2-3 weeks

Quantity:

Add to Cart

Function:

Torque Transmission: The primary purpose of the shaft coupling is to transmit rotational power from the engine’s output shaft to another shaft, such as those in a generator, pump, or other driven equipment.
Alignment Compensation: It accommodates any misalignment between the engine shaft and the driven equipment shaft, reducing stress and potential damage to both the engine and the equipment.
Vibration Damping: It helps in dampening vibrations and shocks that occur during operation, which can protect both the engine and the connected machinery.

Design and Construction:

Material: Typically made from high-strength materials such as steel, aluminum, or composite materials to withstand the mechanical stresses of operation. The choice of material depends on the specific requirements of the application, including torque capacity and environmental conditions.
Types: Common types of shaft couplings include:
- Flexible Couplings: These accommodate some degree of misalignment and reduce the transmission of shock loads.
- Rigid Couplings: These provide a solid connection with minimal flex, used where precise alignment is achievable.
- Elastic Couplings: Designed to absorb shocks and vibrations, often used in applications where flexibility is required.
Design Variations: Couplings come in various designs, such as jaw couplings, disc couplings, or gear couplings, each suited to different applications and requirements.

Operation:

Connection: The coupling connects to the engine's output shaft and the driven equipment's input shaft. It ensures a secure and stable connection to transmit rotational force.
Alignment: Proper alignment of the shafts is crucial for efficient operation. Misalignment can lead to increased wear, vibration, and potential damage.

Maintenance and Troubleshooting:

Inspection: Regularly inspect the coupling for signs of wear, such as cracks, deformation, or excessive play. Check for any unusual vibrations or noises during operation, which may indicate coupling issues.
Lubrication: Some couplings require periodic lubrication to ensure smooth operation and prevent wear.
Alignment: Ensure that the shafts are properly aligned. Misalignment can cause excessive stress on the coupling and connected components.
Replacement: Replace the coupling if it shows significant wear or damage to avoid potential failures.

Compatibility:

Engine-Specific: The shaft coupling must be compatible with the MWM TCG2020 gas engine’s output shaft dimensions and specifications. It is essential to use a coupling that matches the engine’s power output and operational conditions.

In summary, the shaft coupling for the MWM TCG2020 gas engine is a critical component for connecting the engine to other machinery, transmitting torque, and accommodating misalignment. Proper selection, installation, and maintenance of the coupling are vital to ensure reliable and efficient operation of both the engine and the connected equipment.
