WY01162233
Weyeah
01162233
TCG2020
0.75
2-3 weeks
| Quantity: | |
|---|---|

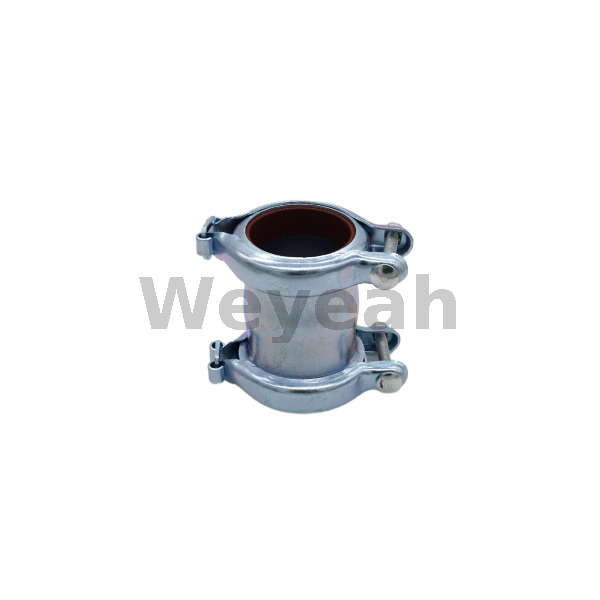

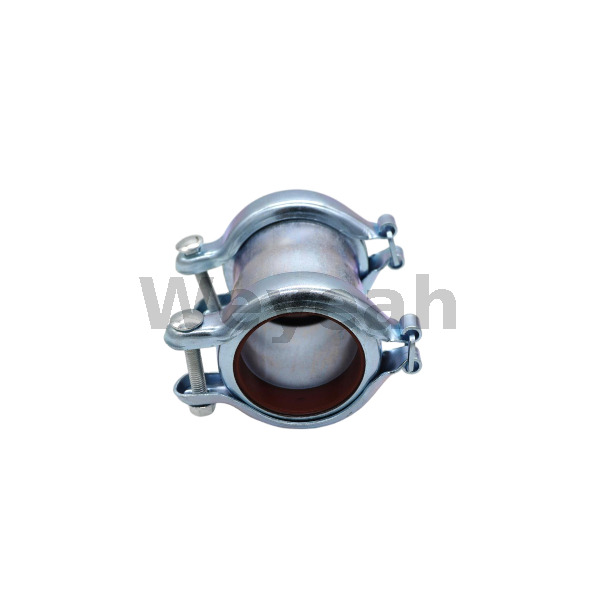

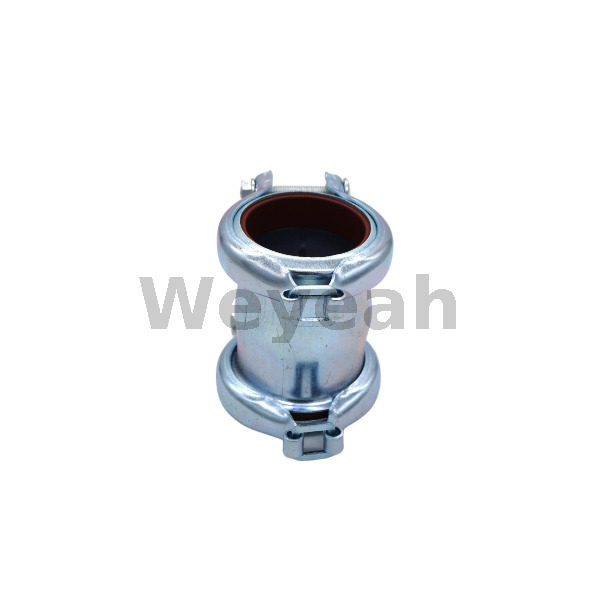

The Pipe Union for the MWM TCG2020 gas engine is a key component designed to connect two sections of piping or tubing, facilitating the flow of fluids within the engine’s various systems. Here's a detailed description:
Connection: The pipe union provides a secure connection between two pipes or tubes, ensuring that fluid systems are effectively joined. This allows for the continuation of fluid flow, such as oil, fuel, or coolant, between different parts of the engine.
Disconnection: It allows for easy disconnection of pipes for maintenance or repair, enabling service or replacement without dismantling the entire assembly.
Sealing: Ensures a leak-proof connection, maintaining the integrity of the fluid systems and preventing leakage.
Components:
Union Body: A cylindrical or hexagonal fitting that serves as the central component for joining pipes. It typically has threaded ends to connect to other pipe fittings.
Threads: Internal or external threads that match standard pipe sizes and ensure a tight fit with the pipes or tubes being connected.
Sealing Elements: Often includes gaskets, O-rings, or sealing rings to create a secure, leak-proof seal between the connected pipes.
Materials:
Body: Made from robust materials such as brass, stainless steel, or aluminum, chosen for their strength, corrosion resistance, and ability to withstand engine operating conditions.
Seals: Typically constructed from flexible materials like rubber or synthetic polymers, designed to handle the specific fluids and pressures within the engine.
Design Features:
Standardized Threads: Designed with threads that conform to standard pipe sizes to ensure compatibility with various pipe fittings.
Easy Assembly: Allows for straightforward installation and removal, facilitating easy maintenance and adjustments.
Leak-Proof Design: Includes sealing mechanisms to prevent fluid leaks and ensure a reliable connection.
Fluid Transfer: Facilitates the smooth transfer of fluids between sections of piping, ensuring that the engine's fluid systems operate efficiently.
Assembly: The union is threaded onto the ends of two pipes or tubes, forming a secure and stable connection. The sealing elements help to maintain pressure and prevent leaks.
Inspection: Regularly check the pipe union for signs of wear, damage, or corrosion. Look for leaks around the connection point and ensure that it is securely fastened.
Cleaning: Keep the union clean and free from debris that could interfere with its function. Check that the threads and sealing surfaces are free from damage.
Replacement: Replace the pipe union if it shows signs of damage, such as cracks or persistent leaks. Ensure that the replacement part matches the specifications for the MWM TCG2020 engine.
Engine-Specific: The pipe union must be compatible with the specific dimensions and requirements of the MWM TCG2020 gas engine. Proper threading and material selection are crucial for ensuring effective operation.
Fuel Systems: Connects fuel lines, ensuring proper fuel delivery to various engine components.
Oil Systems: Joins oil pipes to facilitate the circulation of oil throughout the engine.
Coolant Systems: Connects coolant lines, helping to maintain optimal engine temperature and prevent overheating.
The pipe union for the MWM TCG2020 gas engine is an essential component that ensures a secure, leak-proof connection between pipes or tubes. By providing a reliable method for joining fluid lines, it supports efficient operation and maintenance of the engine’s fluid systems. Regular inspection and maintenance of the pipe union are important to ensure it remains in good working condition and contributes to the overall performance and reliability of the engine.
