Spark plug selection on a Jenbacher J320 follows the engine build and the fuel gas, not the model designation. Confirm the specification from the nameplate, the engine serial number and the documentation issued against that serial number. Send us those details together with the reference on the plug being removed, and we will confirm the part before you order.
A spark plug is a small part with a large reach. It sets the spark that starts combustion in each cylinder, so a plug that is wrong for the engine's configuration can show up as rough running, misfire or a cylinder that will not hold load. On a gas genset, that is lost output rather than an inconvenience.
J320 engines are not all built the same way. Over the production life of the Type 3 family, engines were supplied in different configurations and for different fuel gases, and the ignition components were not identical across all of them. Two engines that are both called J320 can take different plug references.
This is why we ask for the serial number rather than the model name alone.
Quotations and packaging normally carry a family designation rather than a bare reference number. The families below are those published in the manufacturer's current spark plug range, with the engine types stated against each.
Family | Engine types stated by the manufacturer | Suits a J320? |
|---|---|---|
P3MAX | All Type 2, 3 and 4 | Yes, subject to the engine's documentation |
P3PRO | All Type 2, 3 and 4 | Yes, subject to the engine's documentation |
P7V5i | Type 2 and 3, special gases with aggressive contaminants | Yes, for special-gas applications |
P7V3i | Type 4, special gases with aggressive contaminants | No — Type 4 |
P611 | All Type 6 and 9 | No — Type 6 and 9 |
P518 | Type 6, gases with high inert gas content | No — Type 6 |
Two variables separate plugs listed against the same engine type:
Fuel gas. Special-gas plugs are specified to withstand contaminants that shorten the life of a natural-gas plug. The emission setting the engine runs at also bears on what is specified for it.
Maintenance concept. Some families are specified for re-gapping at service, using the manufacturer's tool; others are specified to run without re-gapping. This determines labour and tooling as well as the parts list, and it is routinely overlooked when two quotations are compared on unit price alone.
Type 6 engines (J612, J616, J620) run a pre-combustion chamber, in which the ignition energy of the plug is amplified. Those engines take a separate range. Where a parts list spans more than one engine type, verify each line against the unit it is intended for.
Work from the engine's own records, in this order:
Nameplate and serial number. These resolve the build. Photograph the nameplate rather than transcribing it.
Fuel gas. State the gas, and include the most recent analysis for biogas or landfill gas.
Documentation issued against the serial number. The maintenance schedule and parts list for the unit specify the plug, the service point, and the gap and torque to be applied.
The part being removed. The reference on the plug or its packaging, with a clear photograph of the firing end and the thread.
Service history. What was last fitted, and how it performed on that unit, is evidence no catalogue carries.
Gaps, tightening torques and service intervals are specified in the documentation for the engine and plug type.
The applicability below is as stated on our product pages. It is confirmed against the serial number before an order is placed.
Reference | Also listed as | Engine series on our product page | Suits a J320? | Product page |
|---|---|---|---|---|
351000 | 1233808 | Type 3: J312, J316, J320 | Yes | |
462203 | Supersedes an older reference shown on the page | Type 3 and 4: J312, J316, J320, J412, J416, J420 | Yes | |
1241162 | WY1241162 | Type 3 and 4: J312, J316, J320, J412, J416, J420 | Yes |
462203 is the reference in the manufacturer's own numbering. WY462203 is the Weyeah Power own-brand part built to the same installation dimensions and function. Both are available against that reference; state which you require and we will quote accordingly.
References are superseded over time. Where you are reordering against an old purchase order, send the reference exactly as written and we will confirm whether it remains current.
Plug condition is assessed together with the engine's own data, not in isolation. The tables below indicate where to look; neither constitutes a diagnosis.
Electrode wear widens the gap, and the voltage required to fire the plug rises accordingly. Where the control system logs ignition voltage by cylinder, that trend serves as an early indication: a cylinder rising faster than the rest warrants inspection ahead of the next service window. It is a supporting observation. The replacement or re-gapping point is set by the maintenance plan issued for the engine.
What you observe | Likely direction | Check first |
|---|---|---|
Misfire on one or two cylinders | Plug, connector or lead on those cylinders | Cylinder data; condition of the plug and connector on those cylinders |
Misfire across many cylinders | A condition common to all cylinders, not the plugs | Gas quality and pressure, ignition timing, mixture and load |
Harder starting than usual | General wear across the set | Condition of the set; hours since the last change |
Heavy deposits on removed plugs | Gas contamination or oil carry-over | Gas treatment and oil consumption, before fitting new plugs |
Removed plugs are one of the few direct views into each cylinder. Lay them out in cylinder order, photograph the set and each firing end, and record the hours.
What you see | What it usually points to | What to do |
|---|---|---|
Even wear, similar across the set | Normal end of life | Change or re-gap as planned; retain the photographs as a baseline |
One plug far more worn than the rest | A local condition on that cylinder | Check that cylinder's data before attributing it to the plug |
White or grey glassy deposits | Siloxanes in biogas or landfill gas | Check gas treatment before fitting new plugs |
Dark, oily or wet deposits | Oil carry-over | Check oil consumption and that cylinder's condition |
Corroded electrodes or shell | Aggressive contaminants in the gas | Check the gas analysis and condensate handling |
Cracked insulator | Mechanical damage or fitting practice | Review fitting practice and tooling |
Where two or more of these patterns appear across the set, the cause generally lies upstream of the plugs, and replacement alone will not hold.
Fitting a new plug to a worn extension reproduces the original fault. With the plugs out, inspect the remainder of the path:
Component | What to check |
|---|---|
Spark plug | Wear pattern, deposits, insulator, thread |
Plug extension / connector | Cracks, tracking, burnt contact, seal condition |
Ignition lead | Insulation damage, contact condition, routing near hot parts |
Ignition coil / transformer | Tracking, moisture, connection |
Plug well | Water, oil, dirt; clean and dry before fitting |
Quantity. A J320 has twenty cylinders, so a full change is twenty plugs. Operators commonly hold a small reserve against single-cylinder failure between changes; a site running several units plans stock across the fleet rather than per engine.
Cost. Compare cost per operating hour rather than unit price. As a method only:
cost per operating hour = (unit price × number of plugs + labour for one change) ÷ life achieved
Use the life achieved on the unit in question, and include the cost of unplanned downtime.
Either can be the correct specification. What matters is the evidence behind the part. We supply both, and the following are the points worth establishing before an order is placed:
Dimensions. Seat, thread, reach, hex and electrode configuration must correspond to the part being replaced. Request measured dimensions rather than a general compatibility statement.
Maintenance concept. Whether the plug is specified for re-gapping, and with which tool. This bears on labour as much as on price.

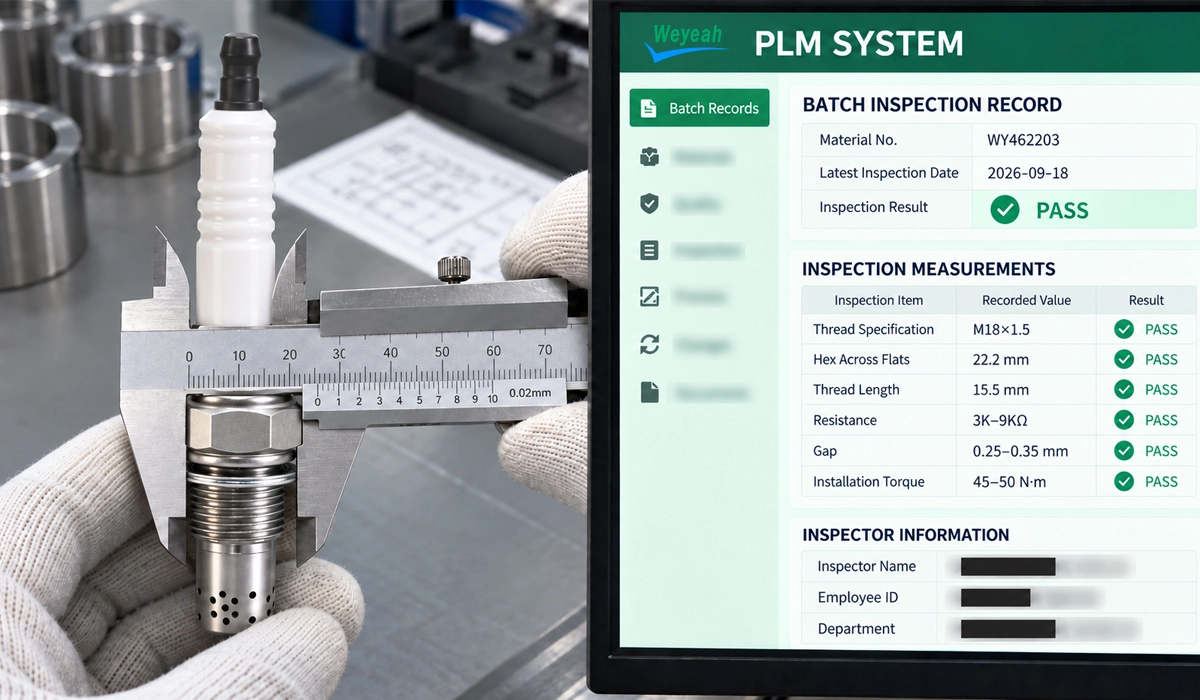

Traceability. Each batch and the dimensions of each product are inspected and recorded in our PLM and warehouse systems, so records can be traced.
Batch consistency. Twenty plugs drawn from one batch behave more predictably as a set than a mixture from several sources.
Warranty. Warranty depends on the product. Check the product manual for the warranty that applies to the part, and establish any requirement in writing before the order is confirmed.
Non-conformance. Agree return terms before the order, not on delivery.
Our own parts are supplied as Weyeah Power spare parts, equivalent in fit and function: built to the installation dimensions and the function of the part they replace. For a fuller comparison of the two options, see our article on genuine versus alternative Jenbacher parts.
To help us check your part quickly, please include your engine model and serial number (or a nameplate photo), the fuel gas you run, the reference on the old plug or a clear photo of it, the quantity, and the date you need the parts on site.
The interval is set by the maintenance plan and technical instructions issued for the engine and plug type. Where the control system logs ignition voltage by cylinder, use the trend to identify which cylinders to inspect first, and use running hours to forecast when the service window falls and how many plugs to hold on site.
It depends on the family. Some are specified for re-gapping at service using the manufacturer's tool; others are specified to run without it. The maintenance documentation for the engine states which applies and gives the gap. Tell us the family in use and we will account for it when confirming the reference.
Keep one reference across the engine unless the documentation states otherwise. Mixed references make cylinder-to-cylinder comparison unreliable and slow the next diagnosis. Where two deliveries must be combined, record which plug went into which cylinder so the data remains readable.
It can. Engines on biogas or landfill gas are often specified with plugs built to withstand contaminants, and the manufacturer's own range separates special-gas families from the general ones. State the gas in use and send the most recent analysis where available.
Warranty depends on the product. Check the product manual for the warranty that applies to the part, and raise any requirement in writing before the order is confirmed. Give us the engine, the serial number and the gas, and we can confirm what applies to the specific part we would supply.
